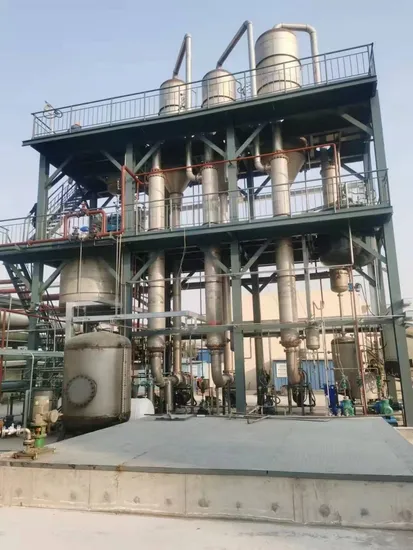

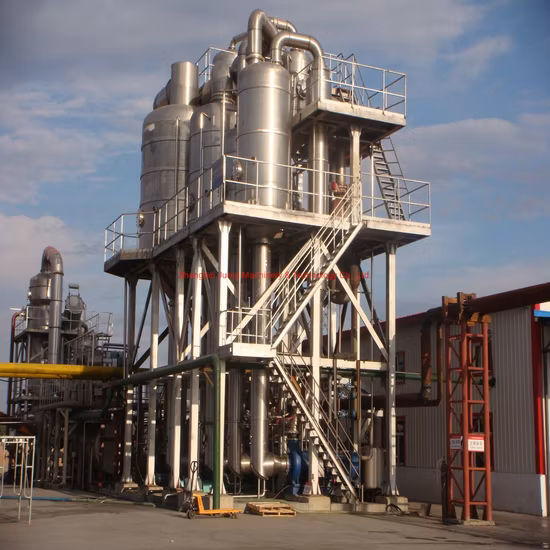

Vacuum Falling Film Crystalizer Milk Industrial Single Double Multi Effect Evaporator
1. Product overview of concentratorThe concentrator is mainly used for the concentration and distillation of the feed li
Send your inquiryDESCRIPTION
Basic Info
Model NO. | ZFQ |
Processing Material | Special Agricultural Products |
Process | Concentration and Dry |
Control | PLC |
Transport Package | Wooden Case Package |
Specification | 7000*5000*6000mm |
Trademark | JXX |
Origin | China |
HS Code | 8419899090 |
Production Capacity | 10 Sets/Months |
Product Description
1. Product overview of concentratorThe concentrator is mainly used for the concentration and distillation of the feed liquid in the food, biopharmaceutical, chemical and other industries, as well as the reflux concentration and extraction of organic solvents (such as alcohol). Reduce the damage to the active ingredients of heat-sensitive materials. The equipment is mainly composed of a concentration tank, a heater, a condenser, a vapor-liquid separator, a liquid receiving tank, a cooler, etc., and a vacuum system is also installed. The parts in contact with the material are made of high-grade stainless steel, which has good corrosion resistance. Comply with GMP safety and hygiene standards.2. Concentrator structureThe concentrator is mainly composed of five parts: concentration tank, heater, condenser, vapor-liquid separator, liquid receiving tank, and cooler. In addition, it is equipped with heating device, stirring device, jacket or coil, transmission device, shaft sealing device, heat preservation device Medium, inlet (outlet) material port, support, temperature sensor, CIP interface and other components.The main equipment of the concentrator is made of SUS304/316L high-grade stainless steel. The inner cylinder wall is mechanically polished or electrolytic mirror polished. The sanitary quick-opening joint is adopted, which is safe and sanitary without dead ends, and conforms to the national GMP sanitary standard.The online control system of the concentrator adopts the color LCD touch screen + PLC automatic control, which can detect and control the relevant parameters of the concentration process online. The control system includes sterilization interface, parameter setting and correction, data curve graph, data report, concentrated batch number setting, online animation, alarm device, etc. It can be connected to the upper computer, computer and printer to realize remote monitoring and data storage and control. Print.In addition, it is also equipped with temperature control device, temperature measuring hole, CIP automatic rotating spray ball, defoamer, baffle, air distributor, temperature sensor, sight glass spotlight, liquid level gauge and other equipment, which is convenient for manual operation and simple. reliable.Item /Model | 50L | 100L | 200L | 300L | 500L | 700L | 1000L | 2000L |
MPa Steam pressure | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
kg/hEvaporation capacity | 20 | 40 | 60 | 80 | 100 | 130 | 160 | 350 |
m2 Heating area | 0.35 | 0.45 | 0.6 | 0.8 | 1.29 | 1.6 | 2.1 | 4.4 |
m2 Condensing area | 1.2 | 1.7 | 2.4 | 3 | 3.2 | 3.5 | 4.5 | 9.3 |
m2 Cooling area | 0.25 | 0.35 | 0.45 | 0.77 | 0.8 | 0.85 | 1 | 1.8 |
L Area of accumulating groove | 45 | 50 | 55 | 55 | 80 | 100 | 150 | 300 |
kg/h Energy consrmption | 23 | 46 | 70 | 92 | 115 | 150 | 185 | 403 |
KPa Vacuum | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
kg Weight | 200 | 280 | 380 | 430 | 630 | 720 | 980 | 1400 |
mm Diameter of feeder hole | φ120 | φ150 | φ150 | φ150 | φ200 | φ200 | φ200 | φ250 |
mm Dimemsions | 1220×600×2420 | 1350×750×2800 | 1500×800×2950 | 1520×850×3000 | 1900×1000×3620 | 2100×1300×3450 | 2200×1400×3520 | 3060×1700×4000 |
3. Structural features of the concentratora. The main equipment of the concentrator is made of SUS304/316L high-grade stainless steel, and the inside and outside are finely polished to prevent the material from sticking to the wall and easy to clean;b. The equipment has good heat transfer performance, high evaporation efficiency, and is not easy to scale, block, stick to walls, and foam. The jacket heating method is used to obtain a higher concentration of finished products; the patented push-pull self-locking technology is used for the slag discharge door, stainless steel hard The liquid is discharged from the tube, which is safe and reliable, and the drip does not leak;c. According to the needs of the process, various extraction operations such as negative pressure and normal pressure can be realized, and the valve can be switched, which is easy to operate; the decompression concentration operation is adopted, and the evaporation temperature is low. Reduce foam formation and improve finished product concentration;d. The structure of the whole machine is compact and the floor area is small; the solvent is closed and recycled in the equipment, which can reduce the input amount by more than 50%.
Company ShowCompany introduction: Jiangsu Xingxing Drying EquipmentJiangsu Xingxing Drying Equipment has established in 1998 and it covers an area of 15000 square meters, possesses fixed asset of USD 7 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.CERTIFICATEPackage:wooden caseService:pre-sale serviceWe Invite customers to visit our company and communicate on technical requirements face to face.sale serviceResponsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.after-sale serviceWe provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.quality promiseOur company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.We look forward to cooperating with partners from all over the world to build win-win cooperation relationship in long term. Welcome for your visiting.Previous ExhibitionFAQ:1.
Q: Please describe your warranty period. A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.2.
Q: Do you provide on-site installation and commissioning? A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.3.
Q: How about the cost of on-site installation and commissioning guidance? A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.4.
Q: Are you a factory or a trading company? A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
