DESCRIPTION

Basic Info

Model NO.	LNT-16100
Customized	Customized
Condition	New
Warranty	1 Year
Transport Package	Plywood Case
Specification	30-5000L/H
Trademark	LENO
Origin	China
Production Capacity	100 Set/Month

Product Description

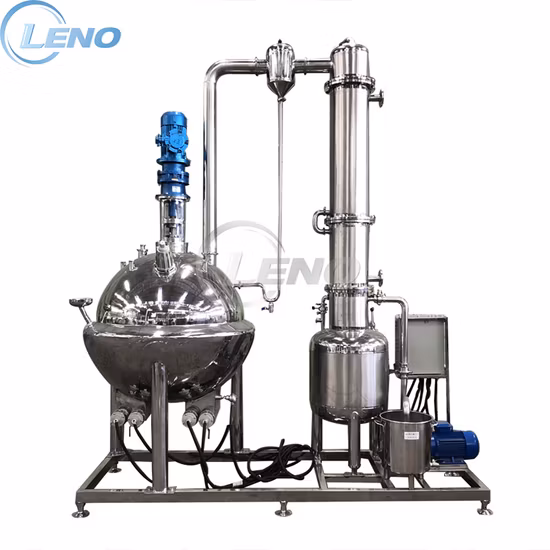

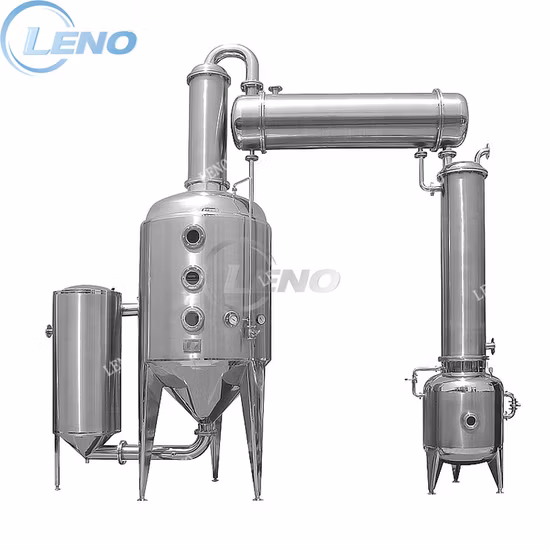

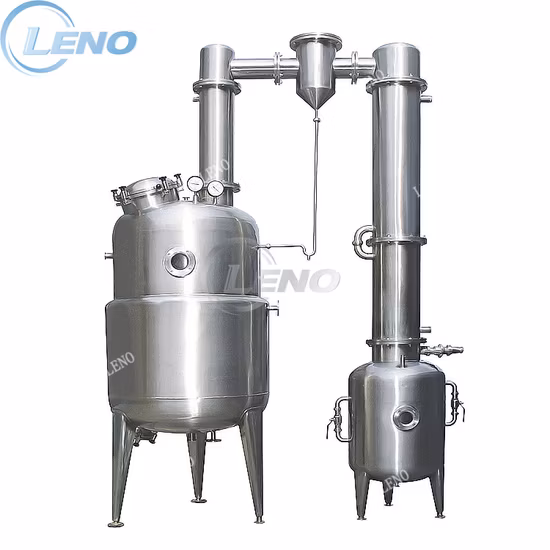

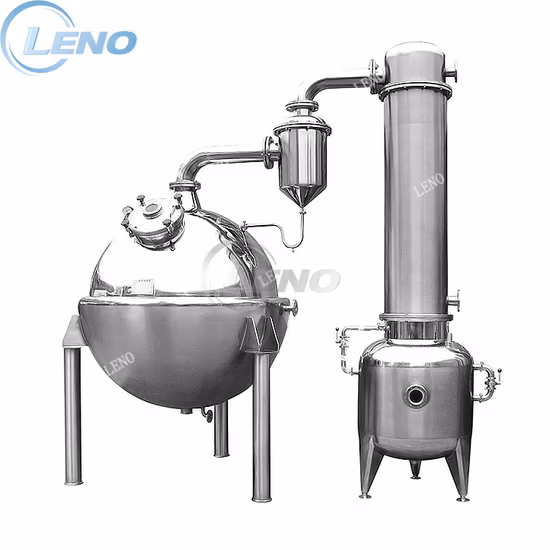

High Performance vacuum evaporator jam concentrator food grade milk honey water alcohol oil
Profile type	vacuum evaporator concentrator
Material	SS304 or SS316L
Capacity	0.1T/H-5T/H (Customized)
Heater type	Electric heating / Steam heating
The Working Temperature	40°C~80°C
The Working Pressure	-0.08Mpa
Power	0.55KW-30KW
PARTS DETAILS	1.Quick open manhole / Pressure manhole
	2.Various types of CIP cleaners
	3.Sterile respirator
	4.Adjustable Legs
	5.Inlet and Outlet sanitary valve.
	6.Thermometer (According to customer requirements ).
	7.Scraped wall mixer .(According to customer requirements).
	8.Liquid level meter and lever controller (According to customer requirements) .

1. vacuum concentrator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials. vacuum concentrator is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2. vacuum concentrator is suitable for the liquid evaporation&concentration in the industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.
3. At present, in order to improve the concentrated products' quality, concentrator widely adopts vacuum concentration process. Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.

Model	(L) Equipment volume	(KG/H) Evaporation quantity	(Mpa) Working Pressure in jacket	(Mpa) Vacuum degree in tank	KW Vacumm Pump	(KG) Weight of equipment	(RPM) Agitator speed
RVC100	150	100	≤0.1MPa (According to customer requirements)	-0.08Mpa	1.5KW	320	(According to customer requirements)
RVC200	250	200			2.2KW	460
RVC500	600	500			3.0KW	680
RVC1000	1000	1000			4.0KW	860
RVC2000	2000	2000			5.5KW	1120
RVC3000	3000	3000			7.5KW	1300
RVC5000	5000	5000			11.0KW	1700

Q1	Are you trade or manufacturer?
A	We are a factory with an international sales company specialized in support for global distributors.
Q2	Can you provide instant technical consulting services?
A	We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
Q3	What's the difference between Ready-To-Ship and Customized products?
A	Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production.
Q4	What is the payment terms?
A	We accept Alibaba Trade Assurance Order, also can T/T and L/C.
Q5	How to choose the shipment way?
A	It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q6	How about the after-sales service?
A	Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
